GE Dual Gradient Sediment Filter 10-50

GE Suez Dual Gradient Sediment Filter 10-50 Pentek, MBB50-05-10

Show Picture 1Show Picture 2

Click here to view larger image

Brand: GE Osmonics Desal
SKU: MBB50-05-10
Price: $16.00

Dimensions: 10"x4.5"
Weight: 1 lb

In stock

NSF Certified
Made in USA

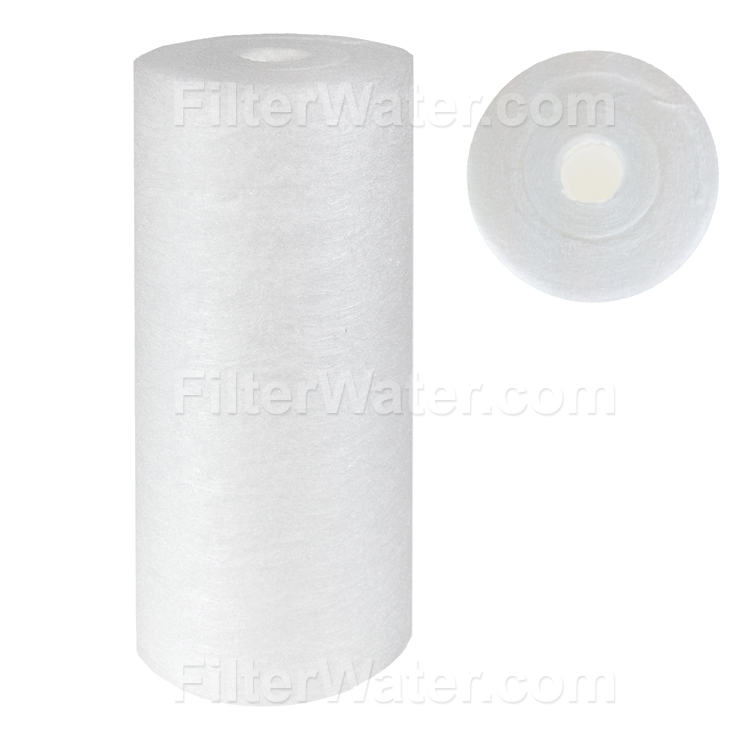

GE Suez Dual Gradient Sediment Filter 10-50 is a 10" X 4.5" filter with 5-50 micron dual sediment layers that reduces sand, rust, dirt, silt, turbidity and similar particles. Dual sediment layers provide up to three times the dirt-holding capacity than pleated, string-wound and standard spun polypropylene cartridges. This Dual Gradient filter starts with a 50 micron outer layer that provides filtration for larger particles and is followed by a 5 micron inner layer that stops anything larger than 5 microns. A larger outer pre-filter reduces the partial load to the inner post filter allowing the cartridge to operate at higher velocities and lower pressure drop.

GE Infrastructure Dual Gradient effectively reduces sediment as a pre-filter to softener and automatic filter systems. The dual depth cartridge design significantly increases capacity and generally have over twice the capacity of a regular sediment filter. Overall unique design and performance characteristics of the DGD Series cartridges make them an excellent choice for all residential, rural, municipal and commercial applications.

Compatible to a number of different cartridges of standard 10"x5" size that carry brands such as Pentek 155357-43 dual gradient filter , Ametek, US Water, GE, Whirlpool, American Plumber and others. Cartridge provides much better performance than a typical 25 micron filter cartridge that fits these systems (5 micron is better filtration than 25 micron).

Key Features & Benefits:

  • 100% polypropylene filtration media for superior purity without affecting taste, odor or color.
  • Dual gradient layers ensure higher efficiency and improved performance.
  • Up to three times the dirt-holding capacity of similar-sized pleated, string-wound and spun-polypropylene cartridges.
  • Versatile and Reusable, allowing a variety of uses
  • ANSI/NSF 42 listed for materials safety requirements only.


Manufacturer ID:MBB50-05-10 (Part# 3015157)
Dimensions(inch/es):10 inch x 4.5 inch
Primary Filter Media:Spun fiber Sediment
Micron Rating:50 microns(Pre-filter), 5 microns(Post filter)
Flow Rate(Gallons per Day, gpd):10 gpd *
Initial Pressure(psi)@ Flow Rate (gpm):<1 psi @ 10 gpm (<0.1 bar @ 38 L/min)
Operating Temperature(°F):40°F - 145°F(4.4°C - 62.8°C)
Filter Life(months):6 months *
Outer Wrap:Spun Wound Polypropylene
* Based on manufacturer's internal testing.
** Filter and membrane element performance can be affected by fluctuations in water quality.

Compatible with the following brands/systems:
Pentek DGD-7525
Culligan HD-950 housing
American Plumber W10-PR
American Plumber W15-PR
3M Cuno Aqua-Pure AP810
Ametek, Pentek, US Filter ECP5-BB
Kenmore 34379
Pentek DGD-5005 ( 155357-43 )

- ANSI/NSF certified component Standard 42 for materials safety requirements only.
- Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

Tested and Certified

NSF 42
