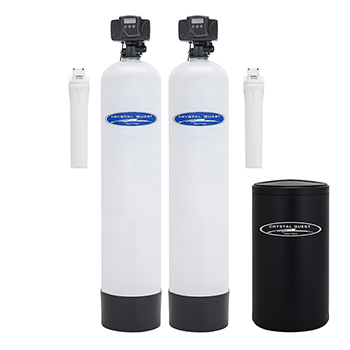

Dual Tank Water Softener and Iron+Manganese Removal System

Whole House Water Softener and Iron, Manganese and Hydrogen Sulfide removal Water System, CQE-WH-01203


1.5 cu.ft	SKU: CQE-WH-01203
Description:	1-3 Bathrooms. Tanks: 10"x54" each.
Dimensions:	54"x10"
Weight:	310 LBS.
Price:	$2,745.00
Qty:

2.0 cu.ft	SKU: CQE-WH-01204
Description:	3.5-6 Bathrooms. Tanks: 12" x 52" each.
Dimensions:	52"x12"
Weight:	340 LBS.
Price:	$3,230.00
Qty:

Ships in 3-5 days

Dual Tank Whole House Water Softener and Iron, Manganese and Hydrogen Sulfide removal Water System. Designed to remove hardness, iron and rotten egg smell for both city and well water. Tanks come with automatic controllers and will backwash themselves on scheduled intervals.

Water travels through 4 stages of filtration:

In First stage, water flows through a 20" sediment filter cartridge that removes sediment, silt, sand and dirt. Also extends the life of the water softener, water filters, and prevents damage to control valves or pumps.

In Second stage, water flows through a media tank that contains Iron, Manganese and Hydrogen Sulfide (rotten egg smell) removing media. Tank comes with a Fleck controller for automatic back-washing.

In Third stage, water flows through an ion exchange media tank which removes calcium and reduces hardness (water softener). An automatic Fleck controller and a brine tank for regeneration is also included.

In Fourth stage, water flows through a 20" solid carbon cartridge for removing volatile organic compounds (VOC's), insecticides, pesticides and industrial solvents.

Specifications

Fiberglass mineral tank #1, filled with Manganese, Iron and Hydrogen sulfide removing media.

Mineral tank #2, filled with a high capacity ion exchange resin and brine water conditioner.

Riser style 1" internal flow distributor.

Electronic Backwash Control Valve with LED display, Pentair Fleck 5600, with 5 year warranty

1" Stainless Steel Bypass Valve (available in 3/4", please inquire or note during checkout)

Filter Life: 1.5 cu.ft - 5-7 years, 2 cu.ft - 7-8 years

Warranty: 1 year on the system, 5 years on Backwash controller, 10 years on the tanks.

Mfg#. 1.5 cu.ft.: CQE-WH-01203, CQEWH01203, 2.0 cu.ft.: CQE-WH-01204, CQEWH01204

Documents

Whole House Installation Manual (pdf)	2.15 MB
Dual Tank System Installation Diagram (pdf)	2.47 MB
Fleck 5600SXT Control Valve Specifications (pdf)	0.22 MB
Fleck 5600SXT Control Valve Manual (pdf)	2.73 MB
