View CartWater Softener and Acid Neutralizing System
      |
Price: $2,330.00 - $2,740.00 Brand: Crystal Quest Dimensions: 10"x54" each tank Weight: 310 lb. or more Ships in 3-5 days As Low As $65 Per Month details
|
|
Email| Product | SKU | Price | Order |
| 1.5 cu.ft | CQE-WH-01251 | $2,330.00 |
|
| 2.0 cu.ft | CQE-WH-01252 | $2,740.00 |
|
Description

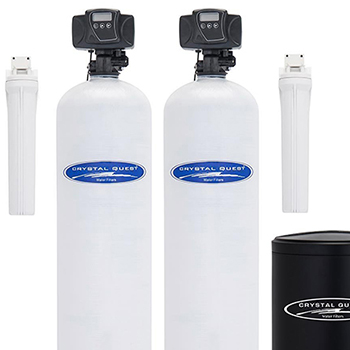

Water Softener and Acid Neutralizer System by CRYSTAL QUEST, a whole house application with 4 stages of filtration against hard water and acidic or low pH waters. Filtration process is distributed into 2 20" filter cartridges for sediment and solid carbon and 2 full tanks for the ACID NEUTRALIZING FILTER media and ion exchange resin-water conditioner. The whole system includes a brine tank for regeneration that can use traditional salt(sodium) or potassium. This unit has a time-initiated regeneration via an electronic controller, the Fleck Control valve, that can be set up when softening capacity is predicted to run out.
Water is softened or conditioned by replacing hard ions like magnesium and calcium with softer sodium or potassium ions. All water softeners use the same operating principle: They trade the minerals for something else, in most cases sodium. The process is called ion exchange. Water Softener keeps all fixtures from scaling and corrosion. Reduced hard water build-up also results to cleaner dishes, easier to clean tubs, showers and sinks; softer, cleaner and longer lasting clothes.
Hard water is water that has high mineral contents like magnesium and calcium. Staining on your sinks, tubs, showers and clothing are major indicators for water hardness. Hard water causes a higher risk of lime scale deposits in household water systems and due to this lime scale build-up, pipes are blocked and the efficiency of hot boilers and tanks is reduced thus, increasing the cost of domestic water heating by about 15 to 20%. Household appliances such as laundry machines, solar heating systems, air conditioning units and many other water-based applications are also affected by lime scale build-ups.
Water is softened or conditioned by replacing hard ions like magnesium and calcium with softer sodium or potassium ions. All water softeners use the same operating principle: They trade the minerals for something else, in most cases sodium. The process is called ion exchange. Water Softener keeps all fixtures from scaling and corrosion. Reduced hard water build-up also results to cleaner dishes, easier to clean tubs, showers and sinks; softer, cleaner and longer lasting clothes.
Key Features and Benefits:
- 4 Stage Filtration Process.
- Acid Neutralizing Filter that prevents corrosion problems.
- Poly Glass™ mineral tank filled with high capacity ion exchange resin.
- Solid state microprocessor with LED display Electronics control valve.
- Brine water mineral exchange tank.
- Easy to replace resin media.
- Self-backwashing microprocessor, Fleck Control system automatically removes the trapped contaminants within the filter bed and washes them down the drain.
Models
| Model/SKU | Tank Size | Grain Capacity | Design Flow Rate(gpm) | Resin/ft³ |
| CQE-WH-01251 | 10" x 54" | 48,000 | 11 gpm | 1.5 |
| CQE-WH-01252 | 12" x 52" | 60,000 | 15 gpm | 2.0 |
Specifications
| Manufacturer ID: | CQE-WH-01251 CQE-WH-01252 |
| Operating Temperature(°F): | 40°F(5°C) - 100°F(38°C) |
| Operating Pressure(psi): | 20 psi (1.4 bar) - 125 psi (8.6 bar) |
| Tank: | Fiber Glass w/ Stainless Steel Jacket/Poly resin |
| Fittings(inch): | 3/4" and 1" NPT input/output |
| Bypass Valve (inch): | 3/4" or 1" Stainless Steel |
| End Caps: | Polypropylene #5 |
| Inner/Outer Wraps: | Polyolefin |
| Netting: | Food Grade High-density Polyethylene |
| Gaskets: | Buna-N |
PRODUCT NOTES:
- All water softeners include the following:
By-pass valve
10 year Warranty on resin tank and brine tank assembly
5 year Warranty on all Computer Monitored control valves
30 Day Money Back Guarantee
- All components are the highest quality in the industry and NSF approved.
- All water softeners include the following:
By-pass valve
10 year Warranty on resin tank and brine tank assembly
5 year Warranty on all Computer Monitored control valves
30 Day Money Back Guarantee
- All components are the highest quality in the industry and NSF approved.
Documents
 Whole House Installation Manual (pdf) |
2.15 MB |
|
Fleck 5600SXT Control Valve Specifications (pdf) |
0.22 MB |
|
Dual Water Softener Installation Diagram (pdf) |
2.53 MB |
|
Fleck 5600SXT Control Valve Manual (pdf) |
2.73 MB |
