Commercial Reverse Osmosis System 7000 gpd

Commercial Reverse Osmosis System 7000 gpd

Show Picture 1Show Picture 2Show Picture 3Show Picture 4Show Picture 5
Show Picture 6Show Picture 7Show Picture 8

Click here to view larger image

Brand: Crystal Quest

Dimensions: 19"x23"x46"
Weight: 250 lb

Ships in 1-2 weeks
SKU: CQE-CO-02030

Price: $8,460.00
SKU: CQE-CO-02030C

Price: $8,760.00
SKU: CQE-CO-02030K

Price: $9,890.00
SKU: CQE-CO-02030KC

Price: $10,190.00



Description
+
Commercial / Whole House Reverse Osmosis System that produces 7000 gallons per day.

Thunder series Commercial RO System is built on a technology that's putting water through a semipermeable membrane(s) to remove majority of particles from the water. The membranes remove TDS (total dissolved solids) and many other contaminants at the average rate of 95%, leaving only very pure H2O molecules. The contaminated stream gets rejected and is typically discarded.

With Four large, 4"x40" commercial size membranes and a 1.5 hp motor, this unit is capable of producing up to 7000 gpd of purified water (at 77 F water temperature). Easy Maintenance & Operation: feature a compact design and have all of their...
Commercial / Whole House Reverse Osmosis System that produces 7000 gallons per day.

Thunder series Commercial RO System is built on a technology that's putting water through a semipermeable membrane(s) to remove majority of particles from the water. The membranes remove TDS (total dissolved solids) and many other contaminants at the average rate of 95%, leaving only very pure H2O molecules. The contaminated stream gets rejected and is typically discarded.

With Four large, 4"x40" commercial size membranes and a 1.5 hp motor, this unit is capable of producing up to 7000 gpd of purified water (at 77 F water temperature). Easy Maintenance & Operation: feature a compact design and have all of their components strategically located for easy access and inspection.

Specifications

Membranes: Four 4" x 40" , 4040 TFC Membranes, for maximum rejection of impurities and high flow.
Membrane Housing: Four 4" x 40" Champ membrane housings, Features a patented design and requires no tools for servicing.

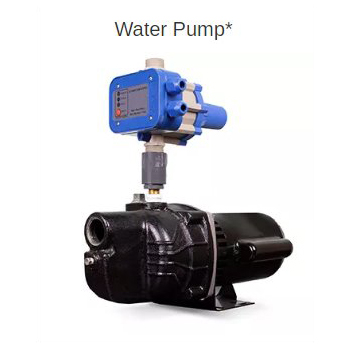

Pump: One 1.5 HP Multistage Pump and Motor, 110 or 220 Volts AC, 60 or 50 hertz.
Frame: Aluminum, White Powder Coated, Corrosion resistant, and light weight.
Pre Filter Housings: Four 4.5" x 20" Big Blue double O-ring filter housings, Offers durability and improved sealing capabilities.
Sediment Filter: One 4.5" x 20" Big White 5 micron sediment filter, Removes sediments and protects the system.
Carbon Block: One 4.5" x 20" Big White 5 micron carbon block, Removes chlorine, odor, and taste from incoming feed water.
GAC Filter: One 4.5" x 20" Coconut Shell GAC filter.
SMART multi stage filter: One 4.5" x 20" SMART multi-stage filter.
Pressure Gauges: Two 2.5" Gauges, 0-300 PSI, Panel Mounted Glycerin filled, and Two 1.5" Gauge, 0-160 PSI, top mount dry gauges, For monitoring the system's operating pressure, the filter and carbon operating pressure.
Low Pressure Switch: One McCann's Low Pressure Switch, Safety device to protect the pump from running dry when there is insufficient feed water pressure.
Solenoid Valve: One Solenoid Valve with manual override, 110 or 220 Volts AC, 60 or 50 hertz, Assists with the on/off functionality of the system.
Manual Flush Valve: One 1/2" brass needle valve, Regulates the product to waste ratio (systems recovery).
Switch: One manual on/off Switch.
TDS Meter: One panel mount TDS meter, provides you with accurate readings of the feed and product water quality.


Optional Features that will be installed if you select "With Options":

  • Concentrate Re-Circulate: This feature offers a higher recovery rate for the system by taking a percentage of the waste water and feeding it back into the system.
  • High Pressure Switch: One Square D high pressure switch, Automatically starts when the tank pressure falls below 40 psi, and stops when the pressure reaches 60 psi.
  • Float Switch: One mechanical float switch, For atmospheric storage tank applications.
  • Flow Meters: One Product (0-2 GPM) & one waste (0-5 GPM) flow meters, enables operator to accurately adjust product to waste ratio and monitor systems performance.

Optional Features that may be available upon request
  • Stainless Steel Housings: Four 4” x 40” PuroTech stainless steel membrane housings, 1/2” FNPT.
  • Computer Controller: One Computer Controller, 110 or 220 volts AC, with pretreat lockout, tank full contacts, low pressure monitoring, and alarm.
Similar model numbers: RO UltraTec Titan 7000 , Flexeon 7000

Made in USA
