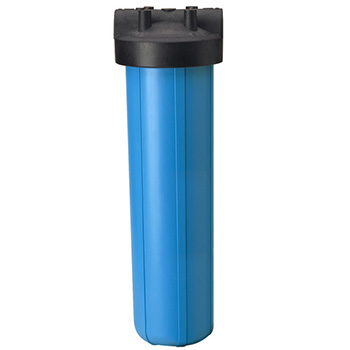

Pentek 20" Big Blue Water Filter Housing 3/4 inch

Pentek 150468 Whole House Filter Housing 3/4" IN/OUT #20

Show Picture 1Show Picture 2

Click here to view larger image

Brand: Pentek

Dimensions: 23 3/8 x 7 1/4
Weight: 8 lb

Temporary sold out
SKU: P150468

Price: $86.00
SKU: P150468-PKG

Price: $138.00



Description
+
Pentek 20"x4.5" Water Filter Housing 150468 with 3/4" inlet with a Blue housing, Black cap (without pressure relief button), HFPP. The filter housing made out of durable reinforced polypropylene, which is compatible with a variety of chemicals.

The Pentek 150468 may is used for whole house, commercial, industrial filtration and other high flow applications. Pentek Blue / Black 20" Big Blue filter housing accomodates a variety of water filters between 4 1/2" and 4 7/8" in diameter. #20BB housing.
Two or more #20 Big Blue filter housings can be connected with a pipe nipple or a pipe union.

Pentek 150468 20 inch Filter...

Pentek 20"x4.5" Water Filter Housing 150468 with 3/4" inlet with a Blue housing, Black cap (without pressure relief button), HFPP. The filter housing made out of durable reinforced polypropylene, which is compatible with a variety of chemicals.

The Pentek 150468 may is used for whole house, commercial, industrial filtration and other high flow applications. Pentek Blue / Black 20" Big Blue filter housing accomodates a variety of water filters between 4 1/2" and 4 7/8" in diameter. #20BB housing.
Two or more #20 Big Blue filter housings can be connected with a pipe nipple or a pipe union.

Pentek 150468 20 inch Filter Housing Specifications

Housing and Cap materials: Blue Reinforced Polypropylene
Connections: 3/4" NPT ( water line diameter )
Maximum Temperature: 100°F ( 37.8°C )
Maximum Pressure: 90 psi ( 6.2 bar)
Dimensions: 23 3/8" x 7 1/4" (594 mm x 184 mm)
Standard Housing Type: 20"x4.5"  ( 20x5 )

Flow rate: 15 GPM (gallons per minute) at 2 psi (depends on filter type)
NSF certified for material Requirements

A Filter Cartridge is NOT included!
  • NSF Certified
