View CartEagle 2000A-SS Whole House Water Filter Stainless
    |
Price: $1,955.00 - $2,155.00 Brand: Crystal Quest  Dimensions: 54"x10" Weight: 200 lb. Ships in 3-5 days  Email
As Low As $54 Per Month details
|
 |
| Product | SKU | Description | Price | Order |
| 1.5 cu.ft | CQE-WH-02109 | 1-3 Bathrooms. Capacity: 750,000 gallons.
Flow rate: 9-11 gpm. |
$1,955.00 |
|
| 2.0 cu.ft | CQE-WH-02110 | 3.5-6 Bathrooms.
Capacity: 1,000,000 gallons.
Flow rate: 10-13 gpm. |
$2,155.00 |
|
Description

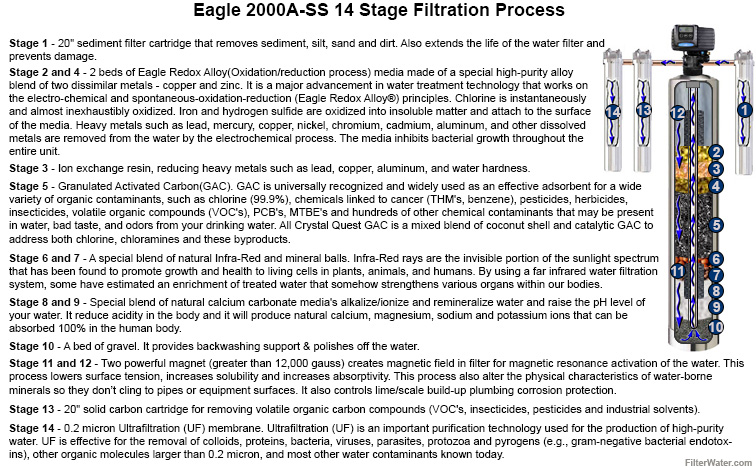

Eagle 2000A-SS Full-Size Automatic Whole House Water Filter is a 14 stage Ultrafiltration system and a significant upgrade over the Eagle 2000A system to an all-stainless tank and filter housings. Stages of filtration is distributed into 3 20"x2.5" filter cartridges and 1 full sized stainless steel tank with a multi-stage process. The pre-configured 20" cartridges includes the Sediment filter, Solid Carbon and the Ultrafiltration membrane which helps removes a large number of contaminants known to be present in city or well water. This unit delivers healthy, better-tasting water for your family to any faucet in your home.
The CRYSTAL QUEST Eagle Water Filter 2000A-SS POE/Whole House Ultrafiltration system is engineered for maximum filtration and maximum performance with minimum maintenance. The tank is installed with an advanced programmable controller for an automatic cleaning. The Solid State Microprocessor with LED display Electronics control valve is a self-backwashing system that automatically removes the trapped contaminants within the filter bed and washes them down the drain. Great for home, office or light commercial use!
The CRYSTAL QUEST Eagle Water Filter 2000A-SS POE/Whole House Ultrafiltration system is engineered for maximum filtration and maximum performance with minimum maintenance. The tank is installed with an advanced programmable controller for an automatic cleaning. The Solid State Microprocessor with LED display Electronics control valve is a self-backwashing system that automatically removes the trapped contaminants within the filter bed and washes them down the drain. Great for home, office or light commercial use!
Key Features and Benefits:
- 14 stage filtration.
- 2 product variants to suit your needs.
- Simple, User friendly, easy to program and dependable.
- Solid State Microprocessor Electronics control valve.
- Automatic and programmable self-backwashing control system.
- Easy to replace resin media.
- Stainless steel housings and tank - heavy-duty, burst-proof construction.
Modles
| Model/SKU | Tank Size | Capacity(gallons) | Flow Rate | Resin/ft³ | Media Replacement |
| CQE-WH-02109 | 10" x 54" | 750,000 gal | 9 - 11 GPM | 1.5 | 5 to 7 years |
| CQE-WH-02110 | 12" x 52" | 1,000,000 gal | 10 - 13 GPM | 2.0 | 7 to 10 years |
Specifications
| Dimensions(inches): | 20x2.5(Filter Housing) |
| Operating Temperature(°F): | 40°F(5°C) - 100°F(38°C) |
| Operating Pressure(psi): | 30 psi - 60 psi |
| Tank: | Solid 316-Stainless Steel |
| Controller: | Solid state microprocessor with LED display Electronics control valve. |
| Flow Distributor(Internal): | 1" Riser style |
| Bypass Valve: | 3/4" or 1" Stainless Steel |
| Filter Life(months): | Sediment and Carbon Block(6-9 mos) |
| Fittings(inch): | 3/4" and 1" NPT input/output |
| End Caps: | Polypropylene #5 |
| Inner/Outer Wraps: | Polyolefin |
| Netting: | Food Grade High-density Polyethylene |
| Gaskets: | Buna-N |
 |  |
| Electronics Control valve | Stainless Steel bypass valve |
Please specify water line diameter at Checkout!
PRODUCT NOTES:
- The system connects to the main line of your home.
- Requires only periodic backwash to keep unit in top condition.
- Fully shipped with filtration media already in the tank.
- 10 year Warranty on Poly resin or Stainless tank, 5 year warranty on Computer Monitored control valves.
- Manufactured from FDA-compliant materials.
- The system connects to the main line of your home.
- Requires only periodic backwash to keep unit in top condition.
- Fully shipped with filtration media already in the tank.
- 10 year Warranty on Poly resin or Stainless tank, 5 year warranty on Computer Monitored control valves.
- Manufactured from FDA-compliant materials.
