Iron Removal Commercial Water Filter

Commercial Iron Removal Water Filter System, CQE-CO-02091
Click here to view larger image

Brand: Crystal Quest
Dimensions: 65"x14"x14"
Weight: 194 lb.

Ships in 1-2 weeks

As Low As $43 Per Month details
NSF Certified Components
Made in USA

Product SKU Description Price Order
3 cu ft CQE-CO-02091

1" line, Max 22 GPM

4 cu ft CQE-CO-02092

1.5" line, Max 41 GPM

7 cu ft CQE-CO-02093

1.5" line, Max 60 GPM

10 cu ft CQE-CO-02094

2" line, Max 95 GPM


Commercial Iron, Manganese and Hydrogen Sulfide removal Water Filters for 1"-3" water lines and up to 280 GPM flow. Designed with top performance and ease of maintenance in mind and can be used for commercial and industrial applications where a high-performance iron removal system is desired.
Our Commercial iron removal Water Filters use iron removal media, along with patented Eagle Redox Alloy ┬« to significantly improve the performance of iron removing media. Eagle Redox Alloy is a copper-zinc formula that is completely safe to operate and meets EPA and FDA standards for level of zinc and copper in potable water.
Eagle Redox Alloy inside
As a side benefit, redox consistently removes 99% of free chlorine, and also removes lead, mercury, iron and hydrogen sulfate. The media inhibits bacteria growth (fungi, algae and mold) and reduces lime scale, mold, and fungi. throughout the entire unit. In fact, testing has shown that it reduces it up to 90%; thus eliminating the need for silver, commonly used in carbon-only filters.

Iron Removal Commercial / Industrial Water Filters features:

  • Can be used with standard Fleck┬« electronic controls or with a mechanical control
  • Heavy duty structural tanks - Poly Glass mineral tank
  • All brass, motor driven control valve with fully adjustable regeneration cycles (on units with electronic control valve)
  • Self adjusting backwash control (on units with electronic control valve)
  • Flow controller to limit backwas flow
  • Engineered for commercial and industrial use
  • Optional skid mounting for tanks

  • Crystal Quest commercial water filters
    Available water flow is between 22 GPM and 280 GPM (gallons per minute).
    5 year Warranty on all Fleck control valves.
    10 year Warranty on media tank.
    All units can be assembled with or without automatic backwash valve. Contact us for price information on manually backwashed units.
    These units are heavy! Actual shipping charges will be added to your order after unit is assembled. A very rough estimate (we express no guarantees if this price is accurate on the date of order!) of shipping charges would be between $180 and $500 (continental US), and can vary greatly based on model, your zip code, location, availability of lift gate, fork lift, and gas prices. LTL Freight shipping out of Atlanta, Georgia.

    Q: How often do I need to replace iron removal media?
    A: To calculate replacement interval in gallons, multiply number of cubic feet by 500,000 gallons

    Table below will help you to identify system for your application. Look for water line size (Pipe Size) and Peak Flow in gallons per minute (GPM), and choose an appropriate model.

    Iron Removal Media, cu.ft. 3 4 7 10 15 20 30 40
    Model CQE-CO-02091 CQE-CO-02092 CQE-CO-02093 CQE-CO-02094 CQE-CO-02095 CQE-CO-02096 CQE-CO-02097 CQE-CO-02098
    Peak Flow, GPM 22 41 60 95 140 250 270 280
    Pipe Size 1" 1.5" 1.5" 2" 2" 3" 3" 3"
    Fleck Valve 2510 2850 2850 2900 2900 3900 3900 3900
    Gravel, lbs. 30 80 100 200 400 500 700 900
    Mineral Tank Size, in. 14x65 16x65 21x62 24x72 30x72 36x72 42x72 48x72
    Backwash Flow, GPM 5 7 12 15 25 35 50 65
    Service Flow, GPM 14 20 35 60 75 185 200 205
    Space Required, in. (WxDxH) 15x16x75 17x18x75 23x24x84 24x24x95 32x32x95 40x48x95 46x54x95 52x60x95
    Shipping Weight, lbs 352 492 840 1,135 1,735 2,400 3,650 4,800
    Commercial Iron , Manganese and Hydrogen Sulfied Removal Water Filter control valves:
    Fleck 2850 control valve for Commercial Arsenic removal water filter
    Fleck 2850 valve

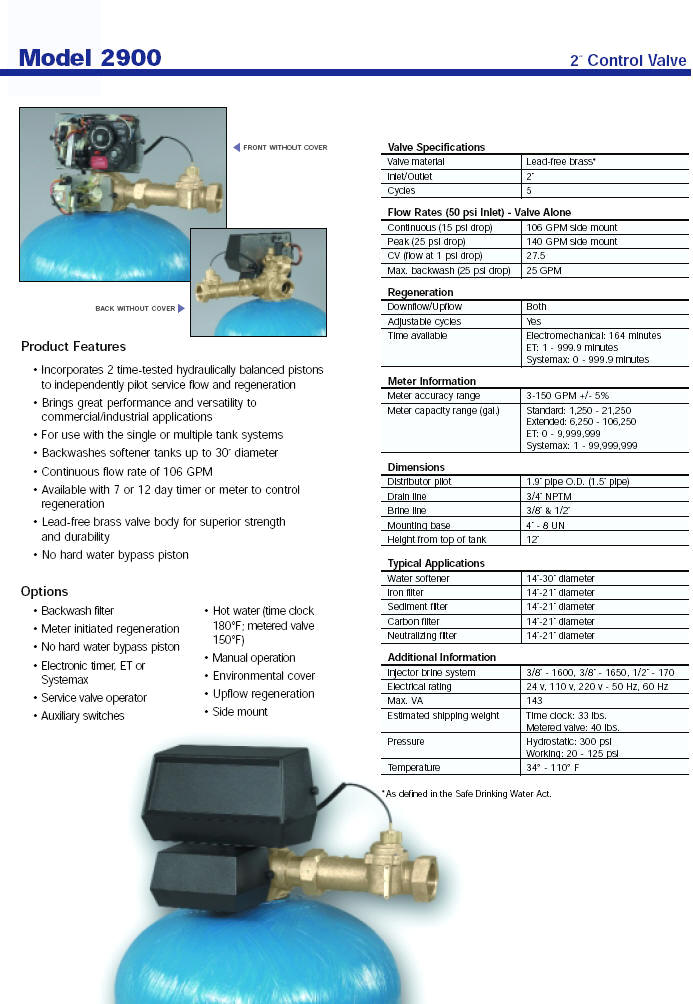

    Fleck 2900 control valve for Commercial Arsenic removal water filter
    Fleck 2900 valve
    Fleck 3900 control valve for Commercial Arsenic removal water filter
    Fleck 3900 valve

    Price Quantity
    KDF Eagle Redox Media
    KDF Eagle Redox Alloy Media contains a mix of two alloys, copper and zinc. Certified to NSF/ANSI 61 standard. Available in 1 lb. increments. Eagle Redox Alloy media is commonly used ...
    Product # FM-KDF-01
    Iron and Hydrogen Sulfide Removal Media
    Iron, Hydrogen Sulfide and Manganese Removal Media is a mineral form of manganese dioxide, which has been used in water for over 75 years. It is a granular filtratoin media for remov...
